eBOX671A
- 产品特点
- 产品规格
-
产品特点
LGA1200 11th/10th gen Intel® Xeon®, Core™ i9/i7/i5/i3 or Celeron® with Intel® W480E chipset (Comet Lake-S)
4 GbE LAN with optional PoE supported
Dual 2.5" SATA HDD drive bays with RAID 0 & 1
2 HDMI and 1 DisplayPort for triple-view
-40°C to +70°C wide range operation temperature
Wide range power input from 9 to 48 VDC
Flexible I/O window supported via mPCIe modules
产品介绍

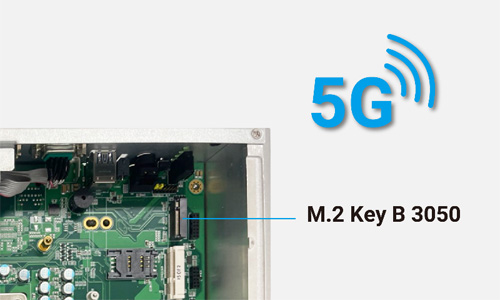

5G-IoT Business PotentialThe outstanding embedded system has one M.2 Key B
3050 slot for 5G module.

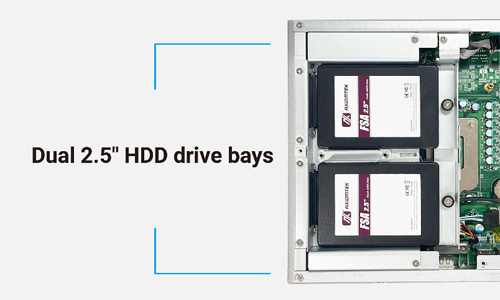

Additional StorageTwo 2.5” SATA HDD drive bays with Intel® RAID 0 & 1 are for extensive storage needs. It also comes with two mSATA supported.Propelling A Smarter Path to Industry 4.0The eBOX671A is powered by the high-performance Intel® Xeon®, 11th/10th generation Intel® Core™ i9/i7/i5/i3 or Celeron® processor with the Intel® W480E chipset. With its IP40-rated heavy-duty aluminum extrusion and steel case, the durable eBOX671A can run in harsh environments with a wide operating temperature range of -40°C to +70°C and vibration endurance for up to 3G. The 9 to 48 VDC power input allows it can be used for factory automation. Leveraging up to 10 computing cores to enhance AI inference capabilities, the eBOX617A presents high performance for a wide range of applications in the AIoT fields such as edge computing, machine vision, deep learning, and robotic control.

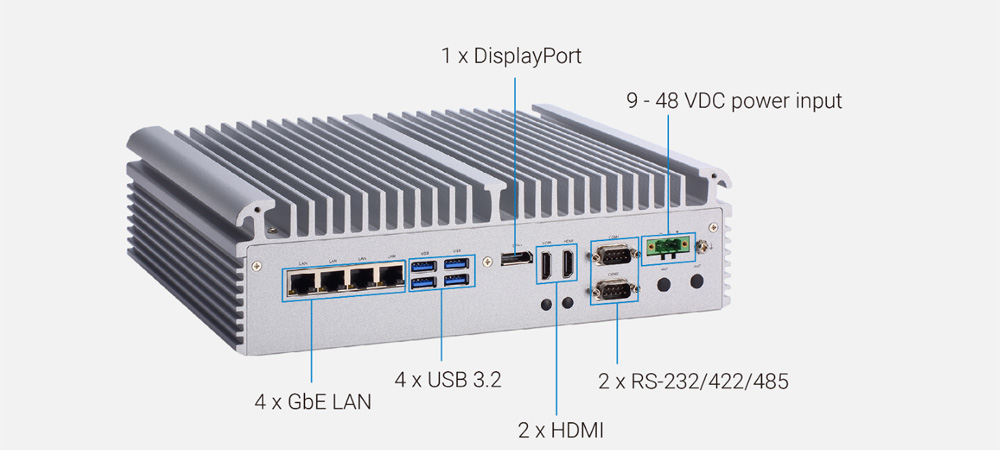

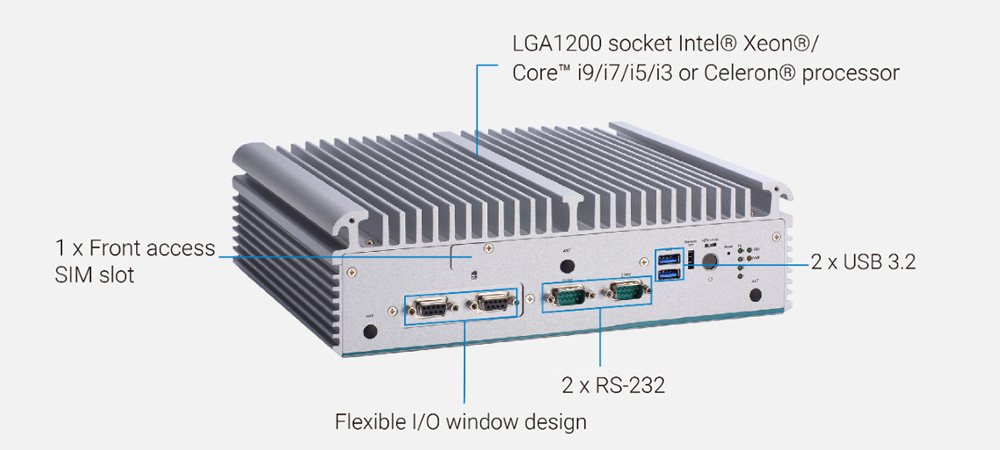

Optimized PerformanceThe new fanless embedded system is powered by the high-performance Intel® Xeon®, 10th gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor with the Intel® W480E chipset.AI Vision at the EdgeFour GbE LAN ports with optional PoE are supported to allow the eBOX671A to connect IP cameras or any PoE-powered device. It also has sufficient USB interfaces which are available for industrial cameras.Rich I/O InterfacesThe system has two lockable HDMI 1.4b, one DisplayPort 1.2++, five USB 3.2 Gen2 ports, one USB 3.2 Gen1 port, four GbE PoE/LAN ports, two RS-232/422/485, two RS-323, and two 10GbE LAN (optional).User-friendly DesignOn the front, the easy-customized eBOX671A has one easy-to-access SIM slot and one flexible I/O window which support diverse I/O choices thru Axiomtek’s PCI Express Mini modules.
CPU - LGA1200 socket 11th/10th Gen Intel® Xeon®, Core™ i9/i7/i5/i3 or Celeron® processor (35W/65W)
Chipset - Intel® W480E
System Memory - 2 x 260 pin DDR4-2933 ECC/non-ECC SO-DIMM, up to 64GB
- ECC memory is available with Intel®Xeon® processor
BIOS - AMI
COM - 2 x RS-232
- 2 x RS-232/422/485
USB - 5 x USB 3.2 Gen2
- 1 x USB 3.2 Gen1
Ethernet/PoE - 4 x GbE LAN (PoE by option) (3 x Intel® I210-IT, 1 x Intel® I219-LM)
Display - 2 x HDMI 1.4b (lockable)
- 1 x DisplayPort 1.2 ++
Digital I/O - Optional
Audio - Optional
Storage - 2 x 2.5" SATA HDD/SSD (up to 15 mm height & RAID 0 & 1)
- 2 x mSATA (enabled in BIOS setting & RAID 0 &1)
Expansion - 2 x Full-size PCI Express Mini Card slot (USB + PCIe + SATA signal)
- 1 x M.2 Key B 3050 slot (for 5G)
- 1 x Internal SIM slot for PCIe Mini Card slot
Others - TPM 2.0
- 1 x Flexible I/O window
- 5 x Antenna opening
- 1 x Power button
- 1 x AT/ATX quick switch
- 1 x Remote switch connector
- 1 x Reset switch connector
- 1 x Grounding screw
Power - 9 to 48V DC input for standard
- Optional PoE function only supports 24V DC input
Watchdog Timer - 255 levels, 1 to 255 sec.
Construction - Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature - Ethernet version
- -40°C to +70°C (-40°F to +158°F) with 0.7 m/s air flow (CPU TDP 35W) (with W.T. DRAM & SSD)
- -40°C to +60°C (-40°F to +140°F) with 0.7 m/s air flow (CPU TDP 65W) (with W.T. DRAM & SSD)
- PoE version (optional)
- -40°C to +60°C (-40°F to +140°F) with 0.7 m/s air flow (CPU TDP 35W) (with W.T. DRAM & SSD)
- -40°C to +50°C (-40°F to +122°F) with 0.7 m/s air flow (CPU TDP 65W) (with W.T. DRAM & SSD)
Relative Humidity - 10% - 90%, non-condensing
Shock - IEC 60068-2-27 (w/ SSD: 50G, half-sine, 11 ms duration)
Vibration - IEC 60068-2-64 (w/ SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
Dimensions
(W x D x H)- 280 x 210 x 80.5 mm (11.02" x 8.26" x 3.16")
Weight (net/gross) - 4.9 kg (10.8 lb)/7 kg (15.43 lb)
Certifications - CE, FCC Class A, UKCA
EOS Support - Win 11/10 IoT, Linux
Software Support - N/A
Mounting - Wall mount kit
- DIN-rail kit
